HAH Nodes

HAH Nodes

Archived product information. Checkout and payments are disabled in this local migration pilot. Listed prices are historical, not current offers.

Legacy SKU
ftdi_1
Historical price (GBP)
4.50000

This is a USB to serial adapter and a six way female to female cable.

Jumper selectable for 5V or 3.3V output. Ships jumpered for 5V use. Chipset is the popular FTDI FT232RL.

USB power has over current protection, using a 500mA, self-restore, fuse.
Two surface mounted green LEDs flash to indicate Tx and Rx activity

A red surface mounted LED indicates power from USB.

Pinout of six way, 0.1" connector is that used by the HAHnode: DTR,RXD,TX,VCC,CTS,GND.

The USB connector on this unit is a mini B.

Supplied with a six way female to female cable. Handy for connecting this module to a HAHnode.

You need to add your own USB to micro B cable (and HAHnode!).

Archived product information. Checkout and payments are disabled in this local migration pilot. Listed prices are historical, not current offers.

Legacy SKU
HAH-235
Historical price (GBP)
2.40000

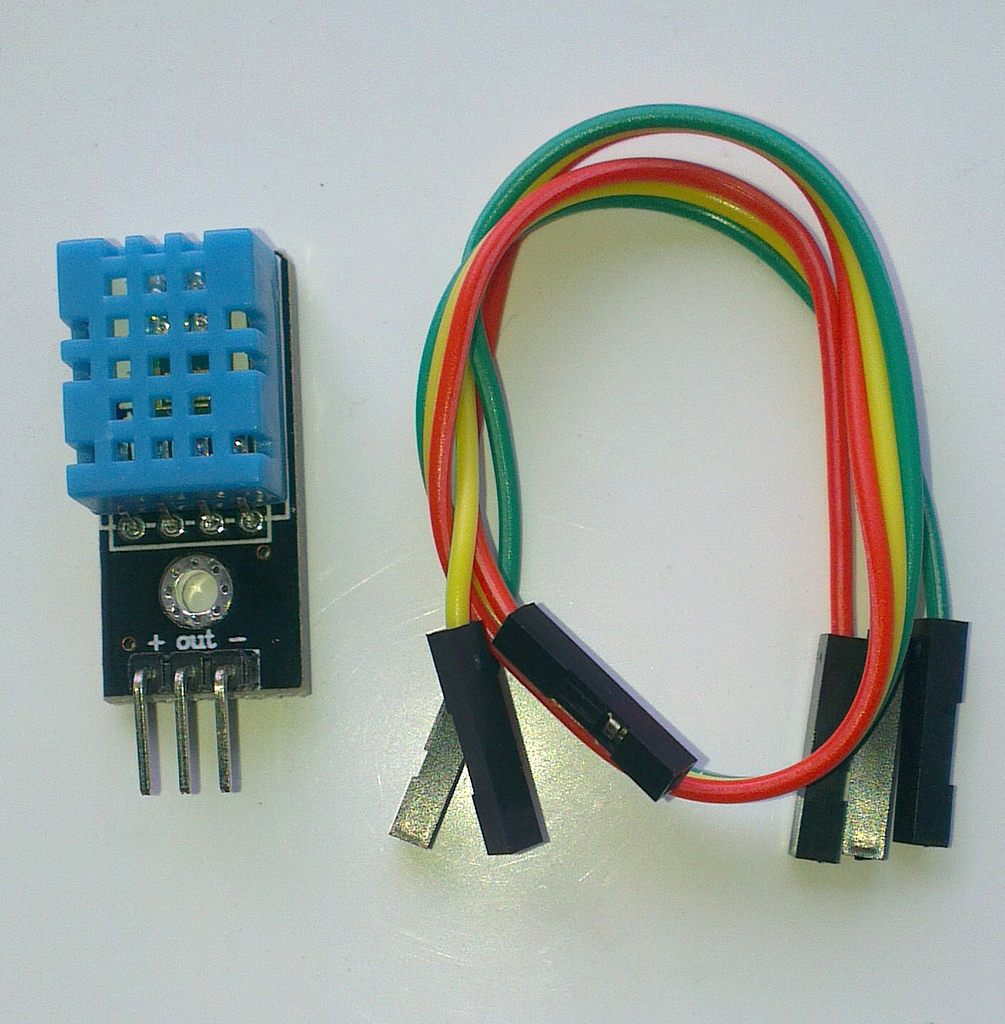

The popular DHT11 temperature and humidity sensor. Can be used as a replacement for the DS18B20 part on the HAHnode.

The sensor is mounted on a small PCB. Supplied with three du-pont hookup leads (handy for standalone testing).

Archived product information. Checkout and payments are disabled in this local migration pilot. Listed prices are historical, not current offers.

Legacy SKU
HAH-71 / HAH-72
Historical price (GBP)
23.50000
Legacy kit contents
Airwick enclosure (node 475): quantity 1, legacy discount -5.5
HAH roomNode kit (node 476): quantity 1, legacy discount 0

Everything that you need to build a remote sensor unit. Excludes batteries (you need 3xAA cells). Note that your HAH must be fitted with a baseNode in order to receive the signals from your roomNode(s).

Archived product information. Checkout and payments are disabled in this local migration pilot. Listed prices are historical, not current offers.

Legacy SKU
HAH-72
Historical price (GBP)
19.00000

A kit of parts which adds a wireless temperature sensor and light level sensor. If wired into an Airwick enclosure this also adds motion detection. Needs battery power at 4.5VDC. Again, the Airwick housing has provision for 3xAA cells, so is ideal.

This is a kit. Soldering is required. Note that your HAH will require a baseNode in order to receive the signals from your roomNode(s).

A full partslist and assembly notes.

Full details of assembly and HAH integration on the wiki
http://www.dbzoo.com/livebox/hah_hahnode/airwick

Archived product information. Checkout and payments are disabled in this local migration pilot. Listed prices are historical, not current offers.

Legacy SKU
HAH-71
Historical price (GBP)
10.00000

An Airwick iMotion compact unit. This is a great roomNode enclosure. Fitted with PIR and ready to be hacked. No batteries or air freshener cannister - just the base unit. This item is really designed to be sold as part of a 'roomNode bundle' ... priced here to discourage individual sales.

Archived product information. Checkout and payments are disabled in this local migration pilot. Listed prices are historical, not current offers.

Legacy SKU
HAH-70
Historical price (GBP)
14.00000

A kit of parts to make a baseNode to connect to your HAH. A typical setup has one baseNode and one or more roomNodes.

1x HAHnode PCB
1x AVR microcontroller
1x AVR socket
1x RFM12B transceiver
1x resonator
1x resistor
1x voltage regulator
1x electrolytic capacitor
4x ceramic capacitors
1x ΒΌ wave antenna wire
1x 6way molex pins

Note that the image shows a pre-built baseNode. You are buying a kit of parts. Soldering required.

Build notes are available.

Details at http://www.dbzoo.com/livebox/hah_hahnode#building_your_own

Also note that you may well want to purchase our 'attach cable' to connect this to your HAH, both for programming & for normal operation.

Archived product information. Checkout and payments are disabled in this local migration pilot. Listed prices are historical, not current offers.

Legacy SKU
HAH-57
Historical price (GBP)
8.25000

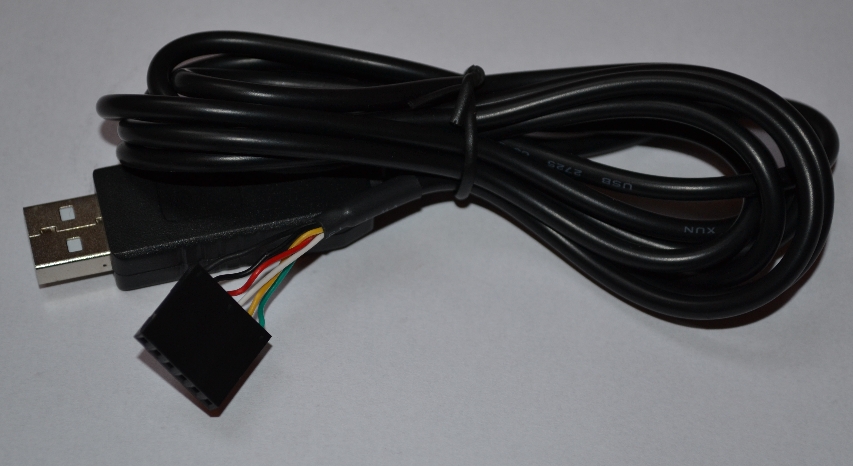

This is a USB connection/programming cable which is compatible with the HAH and HAH Nodes. Standard Arduino style six way 0.1" pinout.

This connects the HAH to your 'master' HAH baseNode.  It may also be used to power a HAHnode from a USB power supply.

Approx length is 175cm

Archived product information. Checkout and payments are disabled in this local migration pilot. Listed prices are historical, not current offers.

Legacy SKU
HAH-56
Historical price (GBP)
0.75000

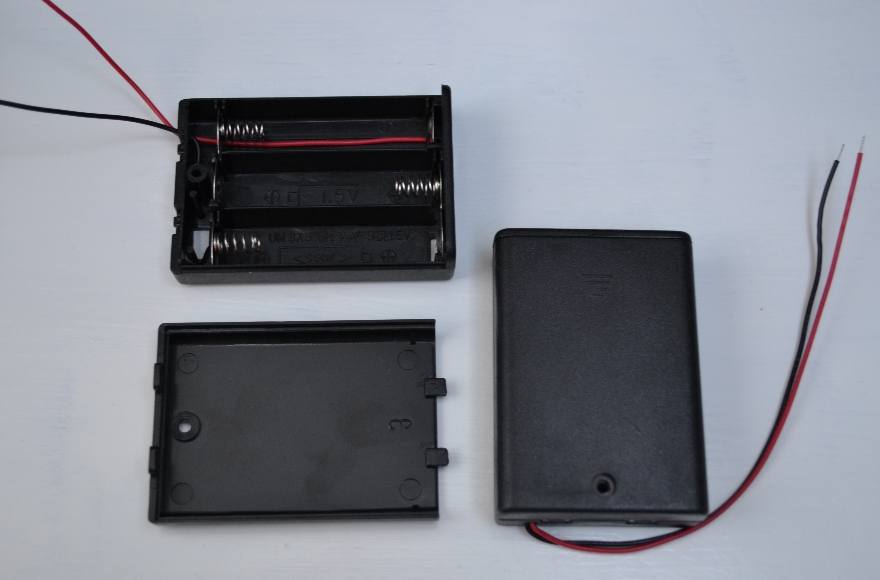

Plastic battery enclosure. Holds 3xAA cells. Sliding lid. Wires attached. Approx dimensions 66mmx45mmx7mm.

Archived product information. Checkout and payments are disabled in this local migration pilot. Listed prices are historical, not current offers.

Legacy SKU
HAH-55
Historical price (GBP)
1.20000

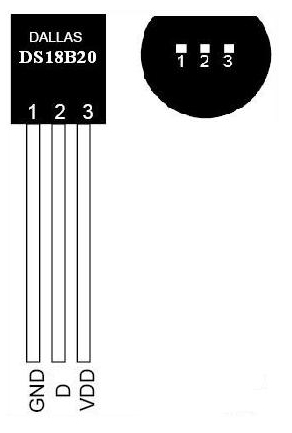

A DS18B20 in a three pin package.
