Legacy SKU
USB-miniB
Historical price (GBP)
3.50000

USB Mini-B Adapter, ideal for testing and experimenting. Each connection point is brought out onto a six way, screwdown, terminal block. Option to fit a six way molex connector (not supplied). Also an option to fit an LED/resistor (not supplied).

Vbus, D-, D+, IO, GND and Shield connections are all available. Legend on PCB makes for easy identification of connections. Great for connecting your development boards or controllers to a USB cable.

If you want to see the type of USB plug that fits this part, visit http://upload.wikimedia.org/wikipedia/commons/d/d6/Usb_connectors.JPG - it's the third connector from the left.

Board size is approx 41 x 25mm. Board has four, pre-drilled, mounting holes.

Archived product information. Checkout and payments are disabled in this local migration pilot. Listed prices are historical, not current offers.

Legacy SKU
HAH-DB9
Historical price (GBP)
3.65000

Sometimes, it can be difficult to get the wiring of an RS232 connection sorted. This breakout unit has a DB9 female socket that is connected to a 10way terminal block (9+Gnd).

A row of 0.1" molex pins is also available for an alternative hookup.

Four mounting holes in the PCB.





Archived product information. Checkout and payments are disabled in this local migration pilot. Listed prices are historical, not current offers.

Legacy SKU
HAH-79
Historical price (GBP)
5.00000

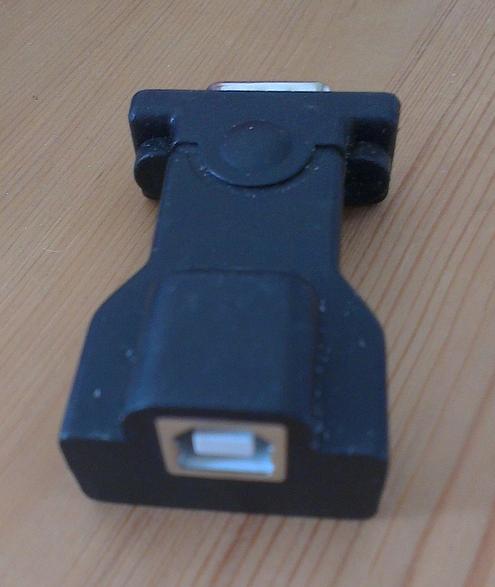

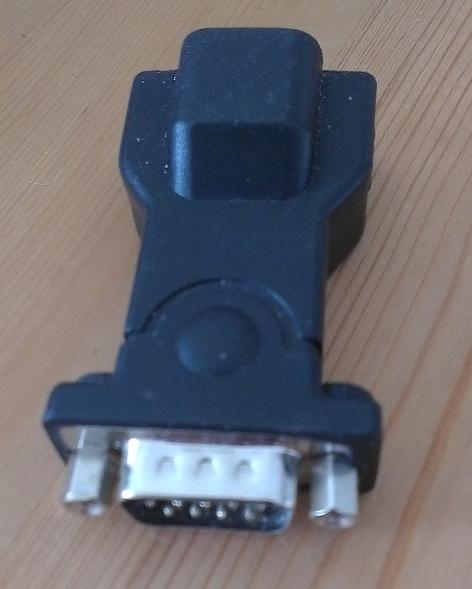

A USB to serial adaptor. USB B connector at one end and a male DB9 at the other. The HAH firmware has built in driver support for this device, so you just need to plug it in to get going.

Needs a USB A to B cable (not supplied) to attach to the HAH.

Archived product information. Checkout and payments are disabled in this local migration pilot. Listed prices are historical, not current offers.

Legacy SKU
HAH-86
Historical price (GBP)
3.85000

If you need to run a long 1-wire bus, it's better to use CAT5 cabling. This adaptor allows you to easily connect the 1-wire bus on the HAH PCB to your CAT5 cable run. Standard RJ45 socket, a row of 8x0.1" molex pins and a set of 8 screw-down terminal blocks. Four pre-drilled mounting holes.

Archived product information. Checkout and payments are disabled in this local migration pilot. Listed prices are historical, not current offers.

Legacy SKU
HAH-53
Historical price (GBP)
8.00000

This is a cable that can be used as part of a hookup which connects a Nokia cellphone to your HAH. It terminates in a DB9 female. Just use a cheap USB to serial cable to plug this into your HAH.

See the HAH wiki page at http://www.dbzoo.com/livebox/hah#xap_sms for details on how to use xap-sms to send and receive SMS messages.

Archived product information. Checkout and payments are disabled in this local migration pilot. Listed prices are historical, not current offers.

Legacy SKU
HAH-57
Historical price (GBP)
8.25000

This is a USB connection/programming cable which is compatible with the HAH and HAH Nodes. Standard Arduino style six way 0.1" pinout.

This connects the HAH to your 'master' HAH baseNode.  It may also be used to power a HAHnode from a USB power supply.

Approx length is 175cm

Archived product information. Checkout and payments are disabled in this local migration pilot. Listed prices are historical, not current offers.

Legacy SKU
HAH-5
Historical price (GBP)
1.20000

A short RJ45 patch cable. Connects the HAH to your internet router

Archived product information. Checkout and payments are disabled in this local migration pilot. Listed prices are historical, not current offers.

Legacy SKU
HAH-4
Historical price (GBP)
1.00000

Fits to PCB to allow connection to the Livebox. Includes zenner diode and resistor

Archived product information. Checkout and payments are disabled in this local migration pilot. Listed prices are historical, not current offers.

Legacy SKU
HAH-3
Historical price (GBP)
4.90000

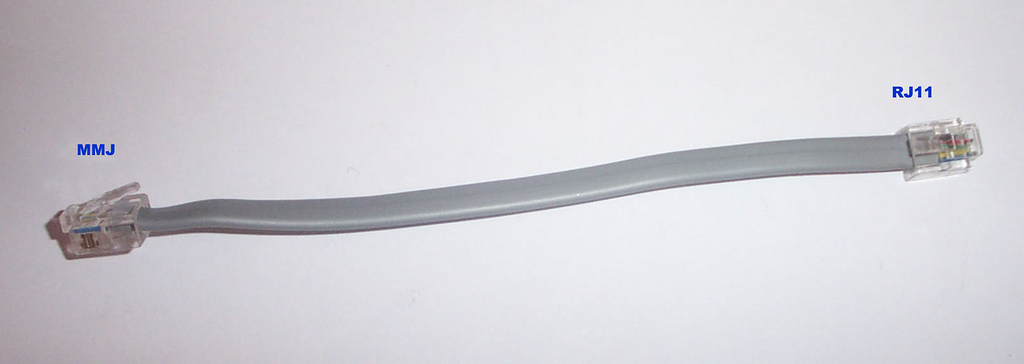

Connects the Livebox to the HAH PCB. MMJ connector (6P6C) at one end and an RJ12 at the other. A six way cable does the connecting. It takes us quite a while to assemble this cable. Also, the MMJ connectors are rare (and expensive). MMJ crimp tools even moreso!

Standard length is around 22cm. If you order this part, that's what you will receive. If you would like a 'custom' length (longer or shorter), or perhaps a MMJ to MMJ cable, be sure to first drop a note to admin@homeautomationhub.com and we can negotiate a price.
