Antennas and RF

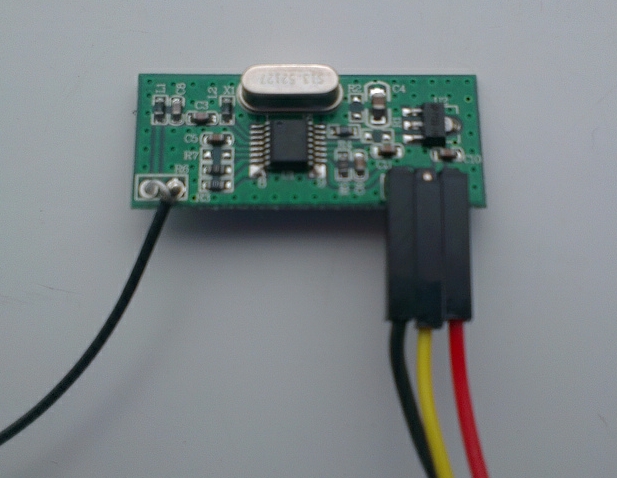

An RFM12B transceiver module. Manufactured by HopeRF. Operating frequency is 868MHz. Full part number is RFM12B-868S1P. As supplied with the HAHnode and roomNode kits.

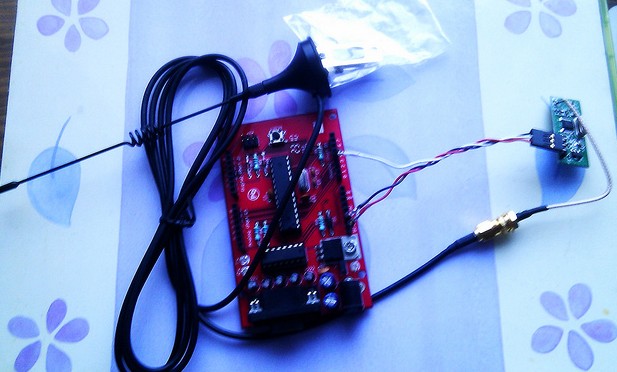

This is a kit of parts for a unit that will decode the HomeEasy RF protocol.

Kit includes:

- a microcontroller board (with pre-programmed micro)

- an RF Receiver module

- wiring to connect the RF Receiver module to the microcontroller board

- an antenna connector for the RF module

- an external magmount 433MHz antenna

The standard HAH RF antenna is a simple length of wire. This is a nicely made magmount antenna that gives rather better performance. Tuned for use at 433MHz.

Unit is 15.5cm tall and the base is 3cm wide. Cable length is approx 150cm.

The good thing about having a decent cable length is that you can experiment with antenna positioning without moving the HAH unit.

Supplied with a pre-fitted SMA connector. Also supplied is a chassis mounting 'pigtail' socket that you can solder to the RF Tx PCB module.

Lidl brand. Controllable by an RF enabled HAH. Note: RF enablement requires the addition of the HAH PCB to your reflashed Livebox.

Fits to the HAH PCB to allow control of RF mains sockets. Includes voltage regulator, mounting socket and pre-tuned (433MHz) aerial
