A linear regulator. Positive 5V part. Packaged as TO-220FP. Made by ST Microelectronics.

This is a 'potted' and waterproof DS18B20. A stainess steel shell covers the DS18B20. The cable is flexible and around 1m long.

This is the microcontroller that is used on the HAH PCB and the HAHNodes. Just the chip, with pins straightened in our anti-static straightener tool.

If you would like either the HAH PCB firmware or the HAHnode firmware flashed onto the device, specify this at ordering (otherwise the chip will be shipped in the virginal state that Atmel supply them - untouched, no bootloader).

The chip will be supplied in the original anti-static tube (well, a cut down version thereof) or in anti-static foam.

Some folks mentioned that their soldering skills were a bit limited and found the 161 little solder joints, needed to assemble the board, a bit daunting.

So, this is a pre-soldered & tested board with pre-programmed AVR microcontroller, MMJ socket, RF module, onboard Ds18B20 temperature sensor, 4 relays, terminal connectors for relays/inputs and PCB mounting hardware.

Also, an MMJ to RJ11 cable so it's all ready to plug into your reflashed Livebox.

Plastic battery enclosure. Holds 3xAA cells. Sliding lid. Wires attached. Approx dimensions 66mmx45mmx7mm.

A DS18B20 in a three pin package.

This is an Arduino board with an RS232 serial connector. Features a six pin ISP connector to allow 168 and 328 chips to be programmed via AVR studio. Barrel connector for external power supply (7.5 to 12VDC). Usual Arduino port pins are exposed. 5V regulator and a 16MHz xtal.

Great for programming the HAH Arduino code onto your own AVR chips (no AVR chip supplied with this card).

This item is an addon pack for the PPE baord. It adds one PPE chip to your existing PCB. Pack contains the PPE chip (PCF8574N), a socket for the chip, 3off 3pin molex parts, 3 jumpers and a 2x8pin molex I/O connector.

Of course, you must solder these onto your PPE board.

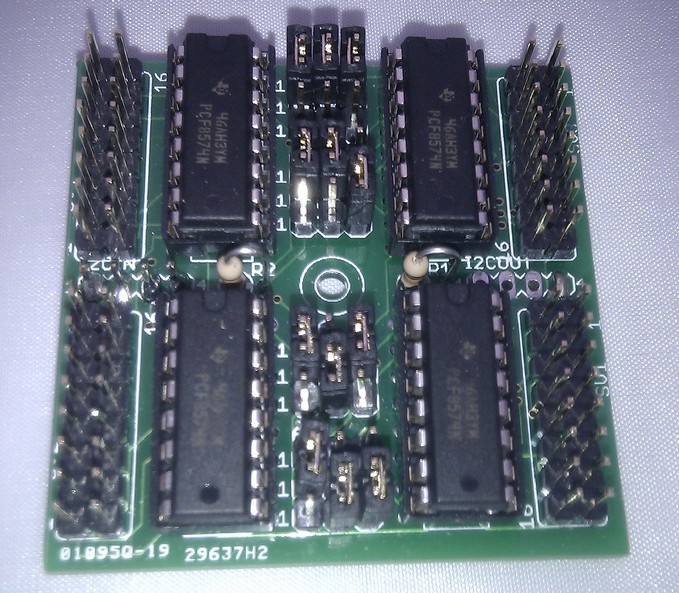

This is an addon PCB that can be used as an extension to the main HAH PCB. Kit comprises the PPE PCB and all parts needed to populate this PCB with one PPE (PCF8574N) chip. If you want more than one chip, simply order as many of the 'add a chip' parts as you require (max 4 PPE chips per PPE PCB).

Note that soldering is required ... you are buying a kit of parts. The image shows a finished board.
